How to Free Motion Quilt: The Set-Up

Welcome to my series on how to free motion quilt. This first post will cover the steps to take to set up your machine and work surface for great quilting.

Get Set Up for Free Motion Quilting

The machine. It has been said that any machine that makes a good straight stitch can be used for free motion machine quilting. But I know quilters who will swear up and down that such and such machine is no good for free motion stitching. I think it comes down to knowing your machine and how much fiddling with it  you need to do to get satisfactory results. Certainly the more harp-space/length of arm/throat/ or room to the right of the needle you have to work the better! But you can quilt smaller projects on a standard small sewing machine. I learned on a basic Kenmore machine, though I quickly wanted a bigger machine.

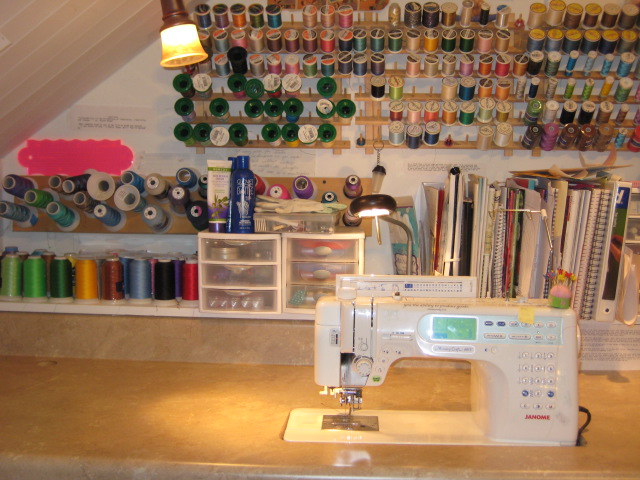

The surface: Above, you can see my main machine (Janome 6600P which has a 9 inch throat) is set flush with the counter top. This is especially nice as it gives a large flat, smooth area for the quilt to glide over. The wall behind (and off to the left of) the counter top keeps the quilt from falling off the edge or dragging on a corner. The best way to move your larger quilt sandwich is to 'puddle' it and keeping it on top of your surface is ideal. This can also be accomplished with a table set in a corner. I also have great lighting in this arrangement.

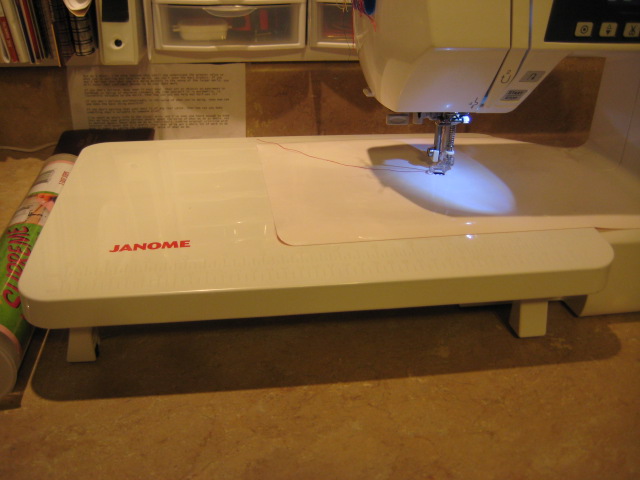

If you don't have your machine set into a table or counter top, there are extension tables available for many machines through their manufacturer or through a third party maker of extension tables. It is even possible to rig something up out of boxes or foam insulation board. The important point is to have a smooth area to glide the quilt over and as large as possible so the quilt doesn't get hung up on something and cause jerky movements while quilting. It is possible to FMQ without this surface, like on a regular sewing machine sitting on top of a table, but your left hand will risk falling off to the left side and your quilting will have to be very small movements. It is worth trying to get something set up to the the left of the machine.

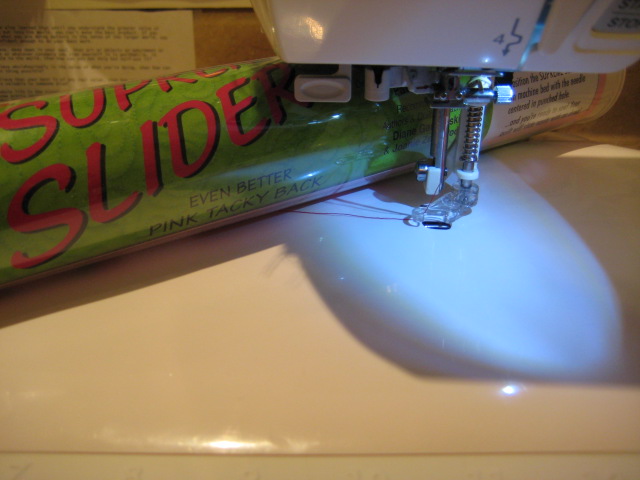

The surface needs to be smooth and slick to make moving the quilt as easy as possible. I love my Supreme Sliders (Supreme Slider (original size) for my Janome 3160 and Queen Size for the larger Janome 6600) for how smooth it makes the area where my hands are when quilting, covering gaps between the machine and the table.
The pink bottom side stays put very well on my extension table, but the counter top is more textured, so I use painter's tape to keep it in place.

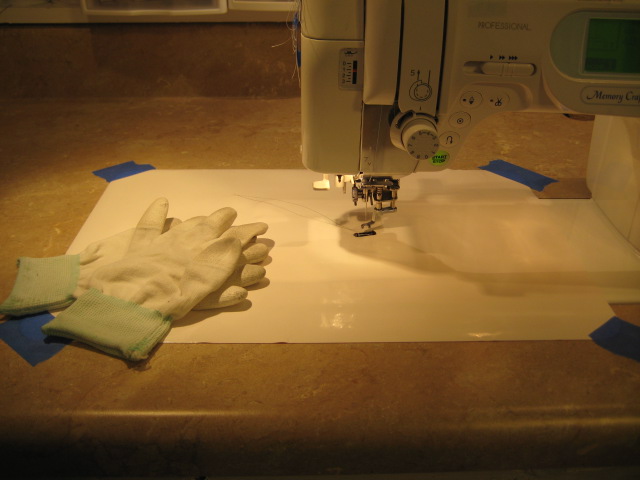

Grip: You need some extra grip when quilting and there are various ways to do this, but my tried and true way is with Machingers Gloves . Gloves can be a hassle sometimes, so I'll try something different from time to time, but I always come back to the Machingers, as seen below. I have fairly pudgy hands and I still like the fit of the small/medium gloves.

 Feed dogs: Typically, the feed dogs need to be lowered for best results and the stitch length needs to be set to zero. When free motion quilting, the movement of your hands determine the stitch length, but setting the length to zero keeps the feed dogs from moving back and forth inside your machine, causing unnecessary wear. Some folks either can't lower the feed dogs or feel they get better results by leaving them up, so they set the stitch length to zero and cover the dogs with the supreme slider, index card, or special plate. The button or lever to lower the feed dogs is more easily accessible on some machines, others are very awkward to reach.

How to free motion quilt series

The foot: Next is the free motion foot which come in various styles. In the above photo are two basic common darning or FMQ feet styles above the ruler and below the ruler is my fabulous Janome convertible FMQ foot set. (Just to the right of it is the ruler toe that can be attached to it for ruler work like long armers do.) I love the convertible set and it is made in high and Low Shank versions so it will fit many other machines than just Janome. There is also a lower-priced and more basic FMQ foot  like the convertible set with the adjustible height, but with only a fixed closed toe.

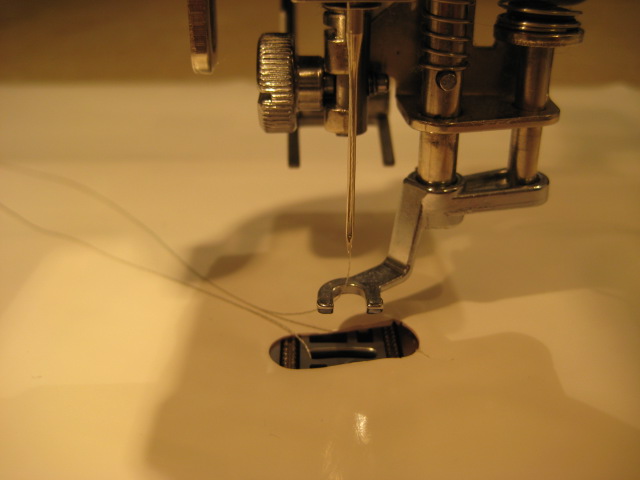

A basic darning foot can work of course and that's what I have for my smaller machine, below. When quilting, you want the foot to just barely push down on the top when the needle goes into the quilt sandwich, and rise above it when the needle is out. If it is set to low, it will cause drag on the movement of the quilt. Too high and you can cause needle deflection problems, skipped stitches, and risk breaking the needle. It is adjusted by changing the presser foot pressure on your machine or by adjusting the foot itself. On the convertible foot set, the spring can be tightened or loosened with a handy screw knob. On the basic darning foot, you can wrap a rubber band around the shaft above the spring to lift it higher.



The Needle: For the needle in your machine, a topstitching needle is best in my opinion (See edits below) and the 90/14 size works for most quilting thread. The top stitching needle has a nice long eye and a long, deep groove in the shaft to protect the thread as it moves through the top many times as each individual stitch is formed. It excels when using larger or specialty threads. I have used a size larger for my doodle stitching with heavier thread and a smaller for finer threads. Quilting, universal, and microtex needles have a place in your machine quilting toolbox as well. There is a fabulous article in the May/June issue of Machine Quilting Unlimited on all types of machine needles.

Edited to add: I no longer favor the top stitching needle more than other needles. It all depends on the combination of thread choice and thickness/density of your project. I've come to this conclusion after talking to my machine's dealer. He solved an issue I was having by explaining that one draw back to the top stitch needle is the larger eye, which can lead to sloppy stitch formation. If you are having thread shedding issues change the type of needle and see if that helps.

One thing to emphasize is that if you are having skipped stitches, increase the size of the needle.

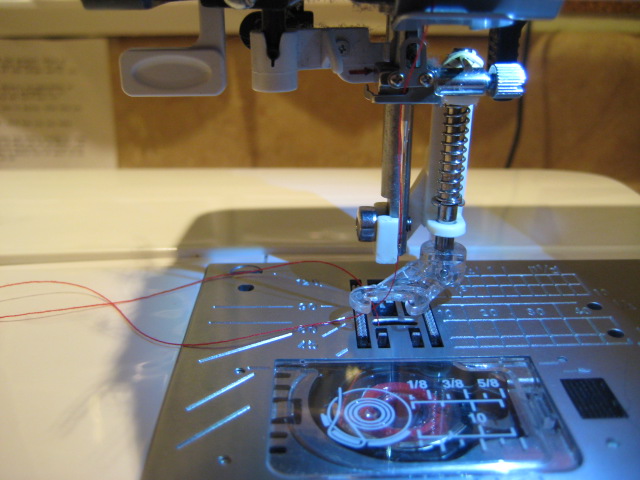

The stitch plate: Edited to add: I forgot to mention the stitch plate! In the photo above you can see that the wide stitch plate is on this machine. Ideally, you want to put a straight stitch only stitch plate onto your machine as this helps with control of the top and backing, keeping the sandwich from tucking down into the hole with each stitch. It doesn't always happen, but it can really help to have that small hole for the needle to go into instead of a big slot.

Make sure you remember to switch back to a wide stitch plate before using anything other than a straight stitch! I use a large Post-It note over the stitch selection buttons when the straight stitch only plate is on the machine. I forgot to tell you about this because I don't always do this with my machine. The straight stitch only plate for my machine is still a wide oval so I don't always see a big difference, but it does add extra time to switch back to the wide plate. There are some newer, more expensive Janomes available which are much easier to switch out the plates or they go from wide to single hole with a touch of a button; I don't really want to change machines, but that ability would be handy!

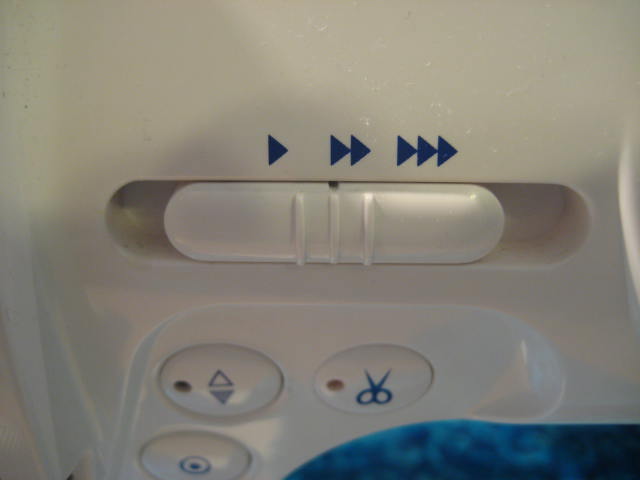

Machine features: There are two handy features in a machine to be used for free motion quilting. One is a speed control slider (or other control)  to adjust the top speed of your foot pedal.The other is a needle up/down function. That is the button with the two triangles on it on my machine. The needle down button makes the needle stop in the quilt sandwich when you stop stitching. This helps keep the quilt from shifting when you are moving your hands.


Bobbin case: A word about the bobbin case; Janome sells a special bobbin case for free motion quilting. I do not have it. I have found it unnecessary  to fiddle with my machine's bobbin tension for quilting unless I am using a very fine thread in the bobbin while quilting with heavier thread on the top. I do have an extra bobbin case that I use when I need to fiddle with the bobbin tension so that I don't change the original bobbin case. But again, I rarely find it necessary to change the bobbin tension when quilting. (Edited to add: Vivian sent me a note to say she recently bought the free motion bobbin case for her Janome and has found it useful, especially with differing threads in the bobbin from the top.)

Extras: I use Little Genie Magic Bobbin Washers in my (drop in, top loading) bobbin case. I'm not entirely certain they're necessary, but they are easy enough to use and they are supposed to help the bobbin thread feed out more smoothly. They're cheap and seem to last forever.

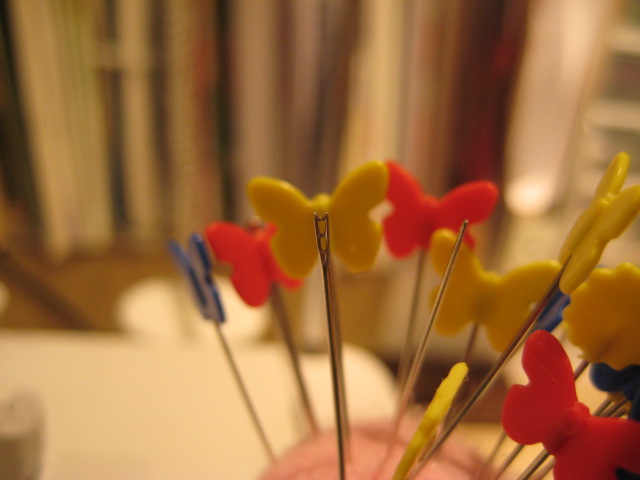

The last thing for your free motion set up, and it's certainly not necessary, is a self-threading needle for burying threads (my post on it, also a video of mine), if you desire to bury them. I do. A spiral eye needle can work well too. Hopefully you can see the needle right in front of the yellow butterfly pin.



That's enough for this installment of How to Free Motion Quilt and should get you all set up. After you've gotten all set up, make some quilt sandwiches to practice on and check out these posts:

How To Free Motion Quilt; Basic Motion and Tension
How to Free Motion Quilt: The Designs

I hope you've found this extremely long post of use and let me know if I've missed anything or ask a question in the comments and I'll do my best to respond.

39 comments:

  1. I have a wonderful little flip camcorder that could make some short videos of your amazing stitching WHILE IT HAPPENS! Just saying. I would love to watch you quilt just because it looks so unbelievably fantastic.

    ReplyDelete
    Replies
    1. Funny you should say that; I'm currently waiting for Youtube to finish 'processing' my latest 2 videos for the next How To post. The fun part is the camera positioning---tricky!

      Delete
  2. Hi, I just bought a second Janome (5200) to start doing some FMQ. The one problem I keep having is that the thread pops off the top thread guide - ALL THE TIME. Something, somewhere is wrong with the tension, but no matter what I do, nothing changes. Do you have any thoughts before I have to find a dealer close by? Thanks!!

    ReplyDelete
    Replies
    1. Thanks for commenting. I hope you see my answer since you are a no-reply blogger, I can't email you. I'm unfamiliar with that model, but a quick look online shows that it threads pretty much like my 3160. First of all, are we talking the very first guide the thread the thread comes to off the spool? And you're pulling the thread snug enough so it seats firmly in the guide? Do you have a spool end holder (what's it really called? I dunno.) over the end of the spool? And you're not accidentally threading onto the bobbin winder tensioner? (Just covering all the bases) Are you making sure the needle and presser foot are up when threading?

      That's all the trouble shooting questions I've got for you. I hope this helps.

      Delete
    2. I know this is a little late, but my Janome 15000 has this problem when I'm using slippery thread and a net cures the issue completely. Hope this helps.

      Delete
  3. I currently have a Singer Stylist 7258, kind of small to quilt, but its all I have until Christmas, I can't set the stich length shorter than .5, will that still work? Also I have a supreme slider, should you still drop the feed dogs if you are using that or does it matter? I still need to play around with the thread tension, I am new to quilting and did not realize how much the weight of the thread effects the tension.

    ReplyDelete
    Replies
    1. Yes, set the stitch length as short as you are able and drop the feed dogs under the Supreme Slider (It probably doesn't matter a bunch, but will avoid wear and tear on the slider).

      Delete
  4. Hi

    I was wondering if you'll be able to help me. I have a Brother LS17, the features state that it can do quilting however I can't lower the feed dogs, there's no speed control and there is no dial fort stich length. All it has is a tension and stitch type dial. Will I be able to quilt on this machine both standard and FMQ. Am quite upset as for £169.99 expected these features, plus i havev to buy a quilting foit and av darning plate. Unfortunatly my partner bought the machine and didn't realise I would need all this and I can't return it . Please help as I would love to make a baby quilt for my brother who is expecting his first child soon.

    Thank You for any help that you can give.

    Kind Regards

    Kay Begum

    ReplyDelete
    Replies
    1. Ouch! According to Google, that's about $280 USD, which would net you a machine in the US with more features, especially the ability to change stitch length. I will bet that by quilting, they mean piecing and straight line quilting.

      But let's make do with what you have: Assuming you can find a darning foot for this machine, a cheap and easy fix for the feed dog issue is to punch a hole in an index card or piece of cardstock paper. Tape the card over the feed dogs with the hole lining up with the needle and the hole in the needle plate. You won't be able to set the stitch length to 0 since this machine doesn't seem to allow it. It might chew a hole in the card eventually, but it's easy enough to replace.

      I think it will be possible to quilt with this machine, but it will take persistence on your part and/or simplifying your projects to suit the strengths of this machine. I wish you the best of luck.

      Delete
    2. Thank you so much. I hope you received my other reply.

      All the best.

      Kay

      Delete
    3. Kay, I had a quick look at your machine manual on the Brother UK website and it looks like you can choose a straight stich pattern number to give you a 1.6 stitch length which is pretty small. Also, there are lots of generic darning feet available which are pretty reasonable.

      Delete
  5. I am just starting out with free motion quilting & embroidery so I am trying to learn all I can before I even start. I was wondering if free motion quilting is expensive for materials? I find that your video are very informative and easy to follow. Thank you so much!! You are such a great teacher!!!!

    ReplyDelete
    Replies
    1. Better late than never with my reply? Sorry. You can get started with free motion with a cheap darning foot for less than $20. Any kind of gardening gloves with grippy dots can be used very cheaply to help grip the quilt. Those are the bare basics, but you'll probably want to improve your set up as the budget allows for best results.

      Delete
  6. Hi Amy, I have been Free Motion Quilting for about 7 years and I found this article very interesting. I too have a Janome 6600P. I bought the straight stitch plate and I set my needle position to 0.0 so that the needle goes into the single hole to the left. Works great and makes a big difference in the stitch quality. Thanks, Debbie

    ReplyDelete
    Replies
    1. Yes, the single hole needle plate can solve a few FMQ problems. I've never set it up in the left hole though. BTW, I find a sticky note with "Single hole needle plate on!" stuck over the stitch selection buttons to be a very good idea!

      Delete
    2. Debbie, I just bought the 6600P a week ago to do FMQ. I'm having trouble getting my tension set right for perfect stitches. Right now it's set at 5 but I'm still seeing the top thread on the bottom. I've been told that that's just the way it is when FMQ! Is this true? I'm frustrated! What is your tension set on when FMQ? Can you help? Thanks!

      Delete
    3. Susan0422 Don't worry about the number. If you're still seeing top thread on the bottom, tighten the top tension. When I had my 6600, there were some thread combinations that went all the way up to 9 which is pretty extreme, but that's what was needed. I suggest going on to the second post in this series which talks more about tension. There's also a more recent post on tips for confident beginners which will help you make good choices to disguise less than perfect stitches. As a beginner, you will notice tension getting too loose and top thread showing in certain parts of rounded shapes....this is due to uneven hand speed, yanking or whipping around a curved shape at a higher speed and causing a tiny, momentary change in tension. Also, tension varies with different thread combinations, humidity, fabrics, batting, etc. Hope you see this and you find it helpful.

      Delete
    4. Thank you, Amy. I will try to find that. I'm not getting eyelashes, just top thread showing on the bottom. When I tighten it, then I get the bobbin thread showing on top. I'm using a polyester thread currently. I tried all cotton and that looked a lot worse.

      Delete
    5. Amy, I guess I'm not sure how to find the next post! Can you help with with that? Thanks!

      Delete
    6. I think you might find this post helpful: http://www.freemotionquiltingadventures.com/2014/12/8-free-motion-quilting-tips-for.html

      The next post in this series is: http://www.freemotionquiltingadventures.com/2013/05/how-to-free-motion-quilt-basic-motion.html

      Check the tab at the top of the blog for the page "Tips for Free Motion Quilting" too.

      Delete
  7. Hello, I have just started with free motion quilting and use my $200 Janome and was not completely happy with the tension....always got the eye lashes on the loops. I managed to find a way to FM quilt on an old Kenmore from the 70's (super high shank) by just dropping the Fred dog and releasing the pressure on the foot so the fabric glides through the foot.It works great and I do not get eye lashes on the back wHen doing loops. Why do you think that is? Can you recommend a reasonably priced machine for free motion? would a semi industrial be a good option like the Tacsew zag/straight stitch machine with a servo motor?

    ReplyDelete
    Replies
    1. Eyelashes on loops is usually due to speeding up your hands as you make the loop, causing a momentary jerk to the threads and throwing tension off. Practice helps with that. Can't say why you'd have it on one machine and not the other IF all the other variables are the same and you adjust the tensions as best you can. Perhaps the Kenmore wasn't as sensitive to tension issues?

      When I first started FMQ, I also wondered about using an industrial machine to get the larger throat space at an economical price. It has worked for some people I am sure, but I am glad I never did buy one as it turns out I am not a fast quilter and industrial machines are very, very fast. Even with a servo motor at a low setting, they're still pretty stinkin' fast. And you won't find needle down function in a basic industrial machine. Needle down is so, so helpful with FMQ.

      As you found with the Kenmore, any machine can do free motion quilting, some just take more adjusting than others, so I am assuming you are referring to getting more space at an economical price? There are a couple of straight stitch only machines out there that have 9 inches to the right of the needle and are very similar. The Janome 1600P, Husqvarna grand quilter, Brother 1500, and there's a Babylock version too (called Jane maybe?) They cost more than a basic sewing machine, but are great for quilting on, and being straight stitch only, aren't as expensive as similar sized machines with other stitches.

      I can't speak too much on other machines as Janomes are the machines I am most familiar with. I have a Janome 3160 which is a higher end smaller machine with a little more room than a basic machine. Then I moved up to a 6600, and now have a Janome 8200 with 11 inches of throat. Not cheap machines, but not the most expensive either. They suit my purposes.

      Delete
  8. Lots of very helpful information on your website, thanks very much.

    ReplyDelete
  9. Since doing Free Motion Quilting and Ruler Work I find that putting the thread spool onto a holder behind the machine (one of those with the long metal thread guide ) I have far less thread breakages than I ever did before...worth a try. Dorothy

    ReplyDelete
    Replies
    1. I love using cone threads with a cone stand. Thankfully my machines have been equipped with a cone stand built in.

      Delete
  10. Thank you so much for sharing this. It has helped me answer several questions on how to FMQ with my Brother quilting machine. I am now less afraid of FMQ.

    ReplyDelete
  11. I recently bought a Janome 1600P (P for professional). I bought it specifically for the speed and absolutely love it. It has needle up/needle down and the scissors option. It has the large throat and nice large bobbins. I use very thin Signature Rainbows polyester thread on top and have no breakage issues. The threading of a professional machine assures that there is no thread jumping out of thread guides. I used it equally well to sew the Bimini and about 25 yards of Sunbrella canvas for our trawler. Speed is adjustable, but certainly no very slow mode!

    ReplyDelete
  12. Hi Amy, I have a Janome SUV1122 and have just started to try FMQ. The problem I was having is that the stitches get very tiny and then long as I'm sewing. I have had the machine serviced and everything checked out okay. Is there anything that I'm doing incorrectly - how can I solve this problem?

    ReplyDelete
    Replies
    1. In free motion, the stitch length is entirely controlled by your hand speed and to a lesser extent, by the speed of the machine. It's a balancing act that takes practice.

      Delete
  13. This post was extremely helpful and II wil read the next two posts! My Bernina 1090 is over 25 years old and no longer working properly. My daughter gave me her Janome Sewist 625E when she got a Brother embroidery machine for Christmas. Very nice, basic machine! I just bought the free motion quilting foot and am going to play with it this weekend!

    ReplyDelete
  14. I just bought a Janome 3160qdc and my manual doesn't day which machine settings to use for Free Motion quilting. I've searched the internet, You Tube, and the Janome sight, but can't find anything about the settings. I am guessing to set it to "00" straight stitch and put the stitch length down to "0" (with feed dogs lowered, of course). Do you have an idea what to do??

    ReplyDelete
  15. Hi, Amy, I noticed you updated your needle preference and said you don’t prefer topstitch needles anymore, which is what I’ve been using. I just bought my second Janome 8200 Horizon Special Edition. It doesn’t seem to run as smoothly as my original 8200, which is up at my summer home. Because of Covid, I haven’t been able to go to my summer home, so I splurged on a second machine. The needle seems to be punching through the fabric (90/14 Topstitch). I was wondering what your new needle preference is, and do you think it would help? Thanks!

    ReplyDelete
    Replies
    1. I use a 90/14 universal needle for free motion quilting. If using batiks, you may want a 90/14 microtex or sharp needle as they are very tightly woven. The topstitching needles just have a very large eye, made for thicker or specialty decorative threads. When we run regular threads through that larger eye, it can lead to sloppy formation of the loop of top thread. This can result in the hook missing the thread or other issues, which can lead to skipped stitches or shredding.

      If the needle sounds like it's punching through....it's likely dull!

      Delete
  16. very helpful. I did not know about the stitch length. Maybe I can get it right now

    ReplyDelete
